Shandong Shunkai electrical equipment co., LTD.

8DJH Secondary Distribution Gas Insulated Switchgear

8DJH Secondary Distribution Gas Insulated Switchgear

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Delivery Time: 30 Days

Contact Now Add to Basket

Basic Info

    Model No.: 8DJH

    Certification: VDE, CCC, ISO9001, Other

    Shell Material: Steel Plate

    Voltage Level: Medium Voltage

    Installation: Other

    Structure: Other

    Current: Other

Additional Info

    Transportation: Ocean,Land,Air

    Place of Origin: China

    Port: QINGDAO

Product Description

8DJH Secondary Distribution Gas Insulated Switchgear

8DJH secondary distribution gas insulated switchgear is the world's current voltage class in the most compact structure of the product, light weight, small volume, high economy.Due to these characteristics, our 145kV GIS meets all environmental requirements for high voltage combination appliances.Because noise and electric field emission are particularly low, it can be installed in very sensitive environments such as residential areas and urban centers.

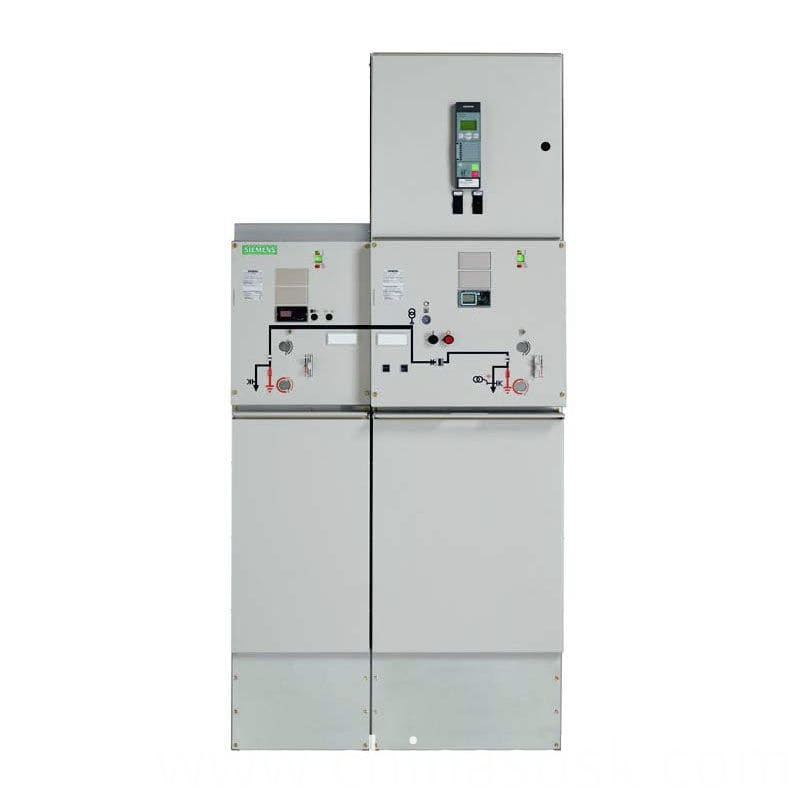

8djh

PARAMETER

Rated voltage kV 12 24
Rated frequency Hz 50/60 50/60
Rated power-frequency withstand voltage kV 42 65
Rated lightning impulse withstand voltage kV 75 125
Rated peak withstand current up to kA 63 50
Rated short-circuit making current up to kA 63 50
Ratedshort-time withstand current 2 s up to kA 25 20
4 s up to kA 20 20
Rated short-circuit breaking current up to kA 25 20
Rated normal current for busbar up to A 630
Ambient air temperature Without secondary equipment °C -25/-40* to +70
With secondary equipment °C -5/-15*/-25* to +55
Storage/transport °C -40 to +70
Degree of protection Primary part IP67
Switchgear IP2X / IP3X
Secondary part IP3X / IP4X
IAC* Wall-standing arrangement A FL up to 21kA (1s)
Free-standing arrangement* A FLR up to 21kA (1s)

FEATURE

1. Rated maximum 17.5kV, 25kA or 24kV,20kA
Bus and feeder current is 630A
2. Factory assembly, type test, meet IEC 62271-200, GB3906, GB3804, GB1984, 3.GB16926 standard
4. Metal seal
5. Single busbar
6. Gas insulation, lifetime seal
7. Left and right sides are extensible
8. Unit type and combination type are optional

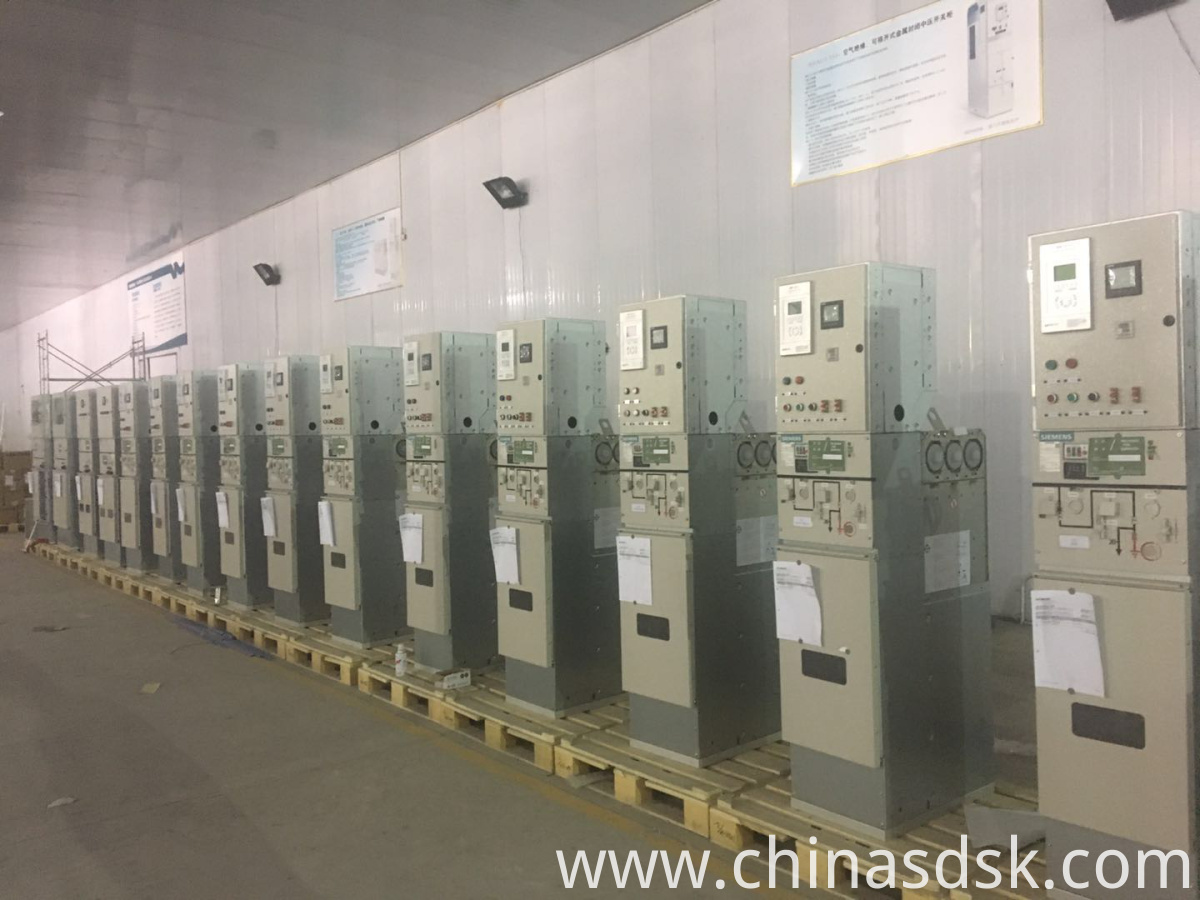

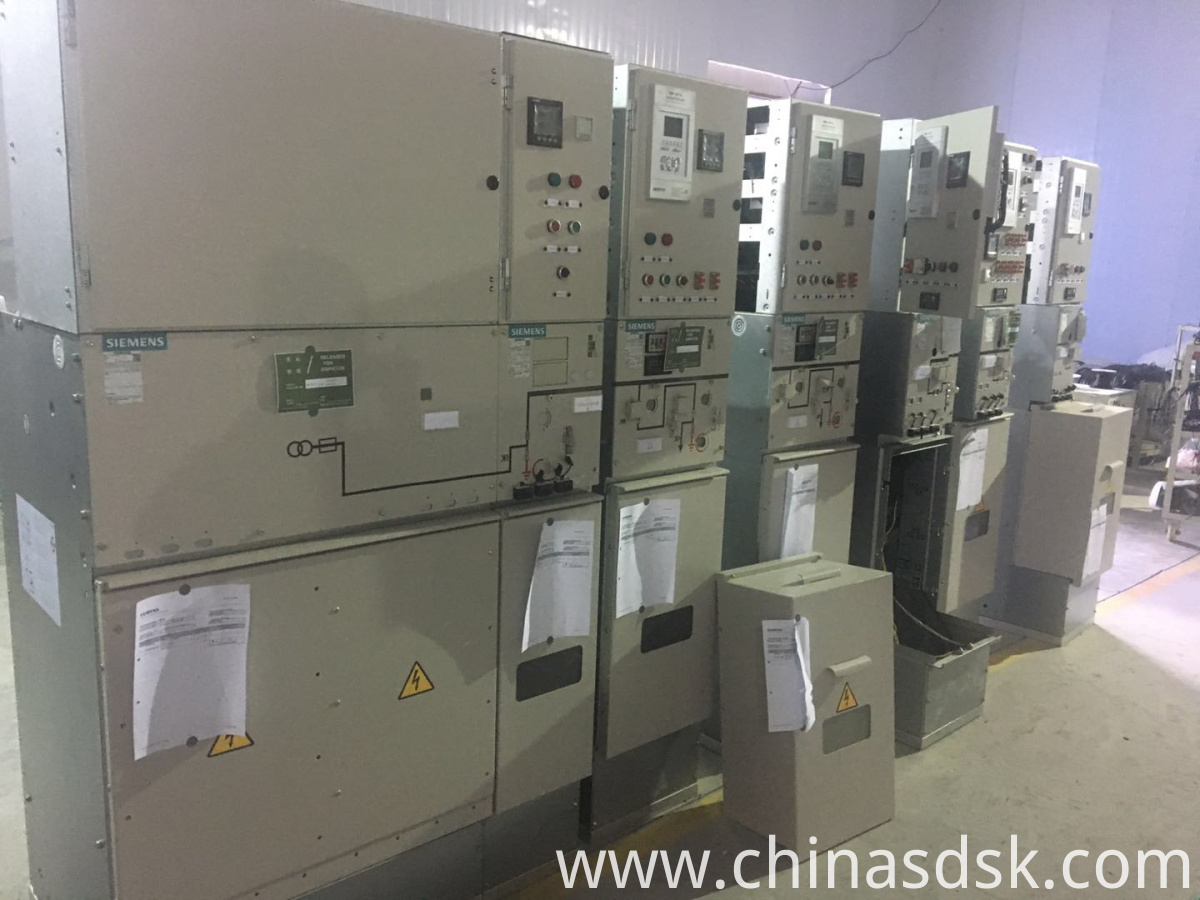

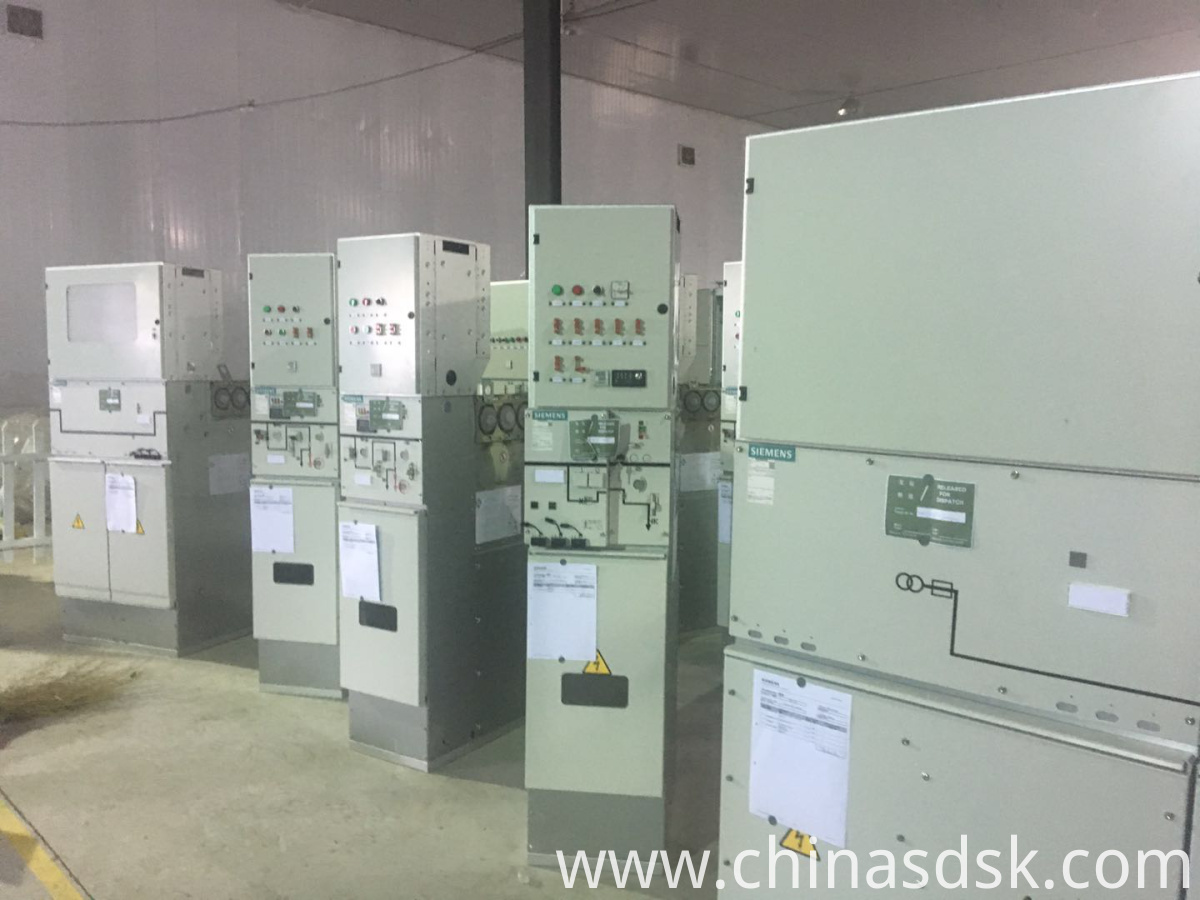

WORKING CASE

8djh


8DJH


8djh

Looking for ideal How Does Switchgear Work Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Component of Switchgear are quality guaranteed. We are China Origin Factory of Dead Front Switchgear. If you have any question, please feel free to contact us.

Product Categories : Medium Voltage Motor Drive Solutions > 8Djh Gas Insulated Switchgear
